QT4-18 Automatic hydraulic Solid Paving hollow Block Machine Brick Pressing Machine for Making concrete cement Blocks

FOB Reference Price:Get Latest Price
$8,000.00 - $20,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
QT4-18
Power:
17KW
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years
Brick Raw Material:
Sand, Crushed stone, fly ash, cement and so on
Capacity:
5760 pcs/8hour
Type:
Hollow Block Making Machine
Certification:
ISO, CE, SGS, BV
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Place of Origin:
Shandong, China
Brand Name:
DRF
Voltage:
220V/240V/380V/400V/415V/440V
Automatic:
Yes
Processing:
Brick Molding Machine
Method:
Vibration
Condition:
New
Dimension(L*W*H):
2700x1600x2500mm
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works , Block making machine
Key Selling Points:
Automatic, high capacity
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan
Showroom Location:
Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
Name:
QT4-18 Automatic Solid Paving Block Machine
Forming cycle:
20-30s
Pcs/mould:
4pcs for 400x200x200 hollow blocks
Power:
17kw
Weight:
4000kgs
Color:
Gray, Red, Yellow, blue or customized
Package:
container
Pallet size:
900x550mm
Block material:
Sand, crushed stone, cement, fly ash and so on
Hydraulic pressure:
16Mpa
Supply Ability
Supply Ability:
100 Set/Sets per Month

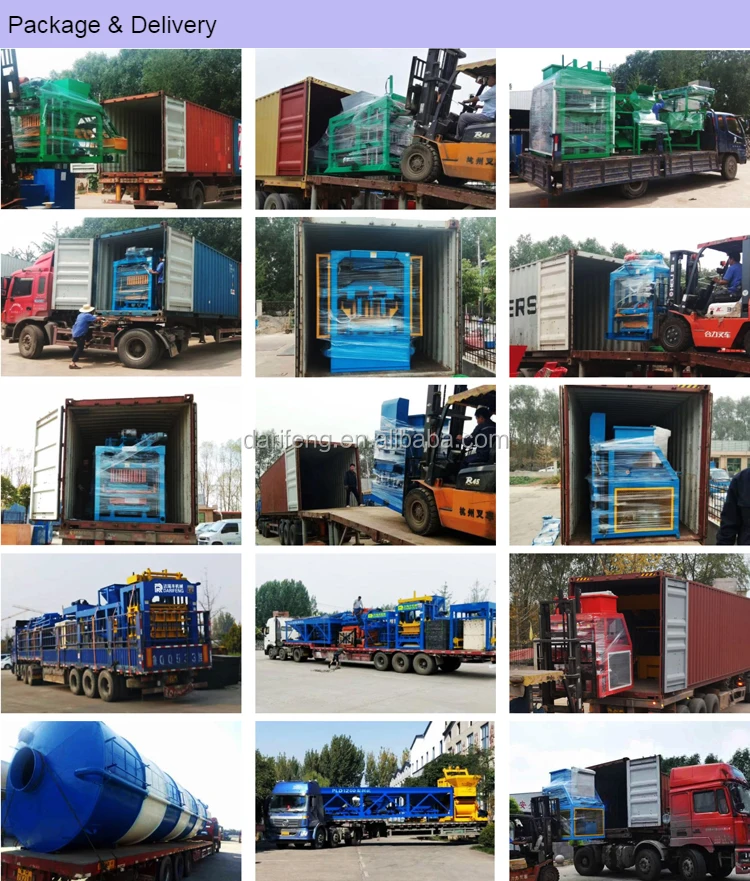

Packaging & Delivery
Packaging Details
Container
Port
Qingdao port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 25 To be negotiated
Video Description
Product Description

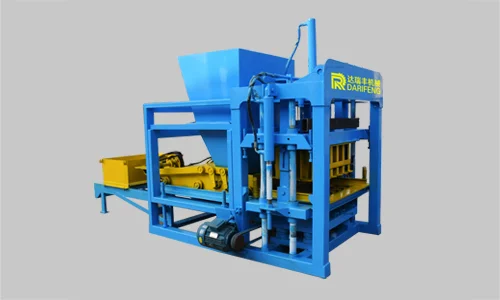

QT4-18 Automatic hydraulic Solid Paving hollow Block Machine Brick Pressing Machine for Making concrete cement Blocks

QT4-18 Automatic hydraulic Solid Paving hollow Block Machine Brick Pressing Machine for Making concrete cement Blocks is one of our sell best automatic block machine model, it is full automatic can make all types of hollow blocks, solid blocks, pavers, curbstones and so on, adopts our most advanced hydraulic system and vibration system, can ensure the block quality very good and the working noise very low. We cooperated with SIEMENS, SCHNEIDER, OMRON, CALYCA and so on to make sure our block machine with high quality and keep our machine work more stable

Technical Specifications
Model
QT4-18
Forming cycle
15-25s
Hydraulic pressure
16Mpa
Vibrating frequency
2800-4500r/minute
Power
17KW
Pallet size
900x550mm
Dimension
2700x1600x2500mm
Weight
4000kg
Brick material
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes, and so on.
Applied product

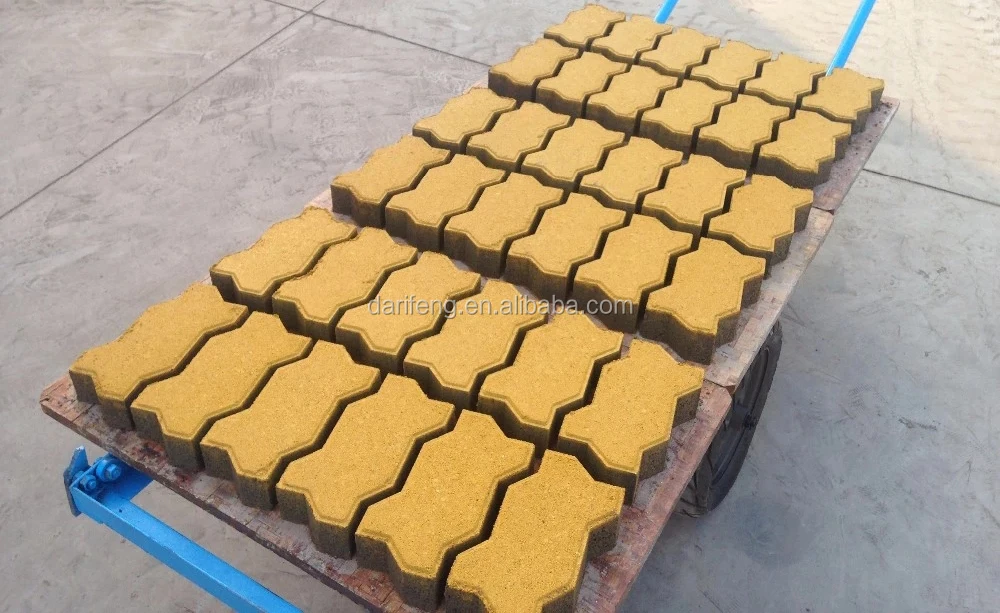

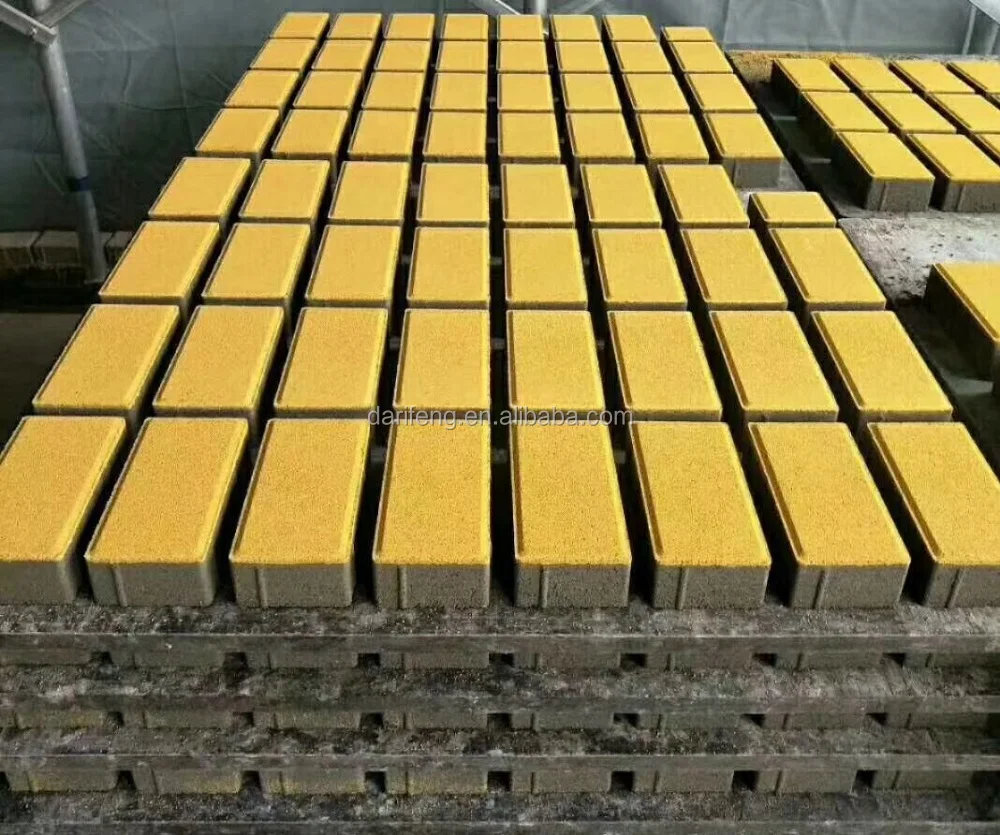

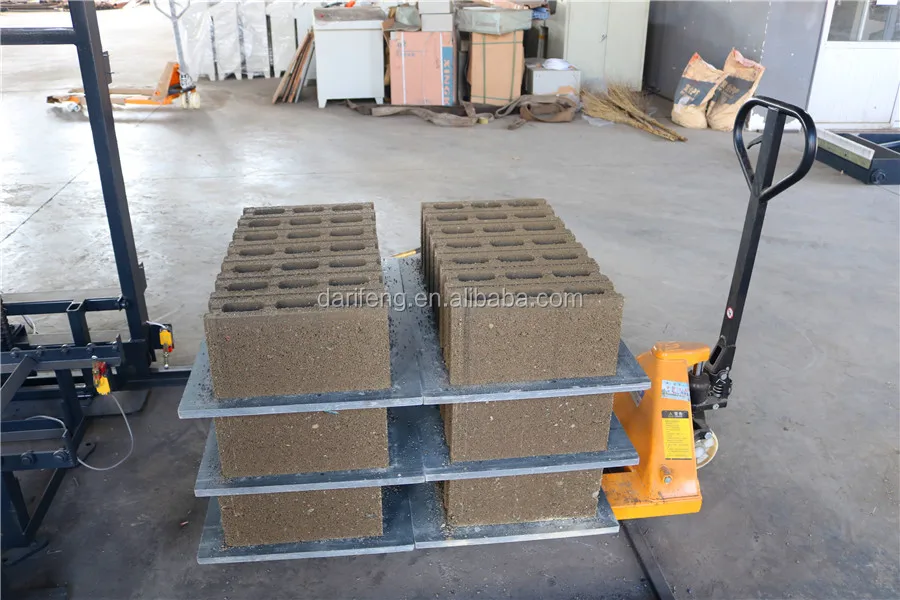

Hollow block, solid blocks, paving blocks, Curbstone, Slabs, Hourdis blocks, interlocking blocks and so on.
Production capacity
QT4-18 can make all of above blocks by changing the moulds, we can also customize the moulds according to your block size.
Machine display
JQ500 Mixer
Mix the Sand, crusheed stone, Cement and water into concrete
Input capacity:800L
Output capacity:500L
Power:7.5KW
Size:1.5x1.5x1.2m
Weight:800KGS
8m Belt conveyor
Transfer the concrete to block Machine storage hopper from Mixer
Power: 2.2KW
Weight: 250 KGS
Size: 5x0.85x0.4m

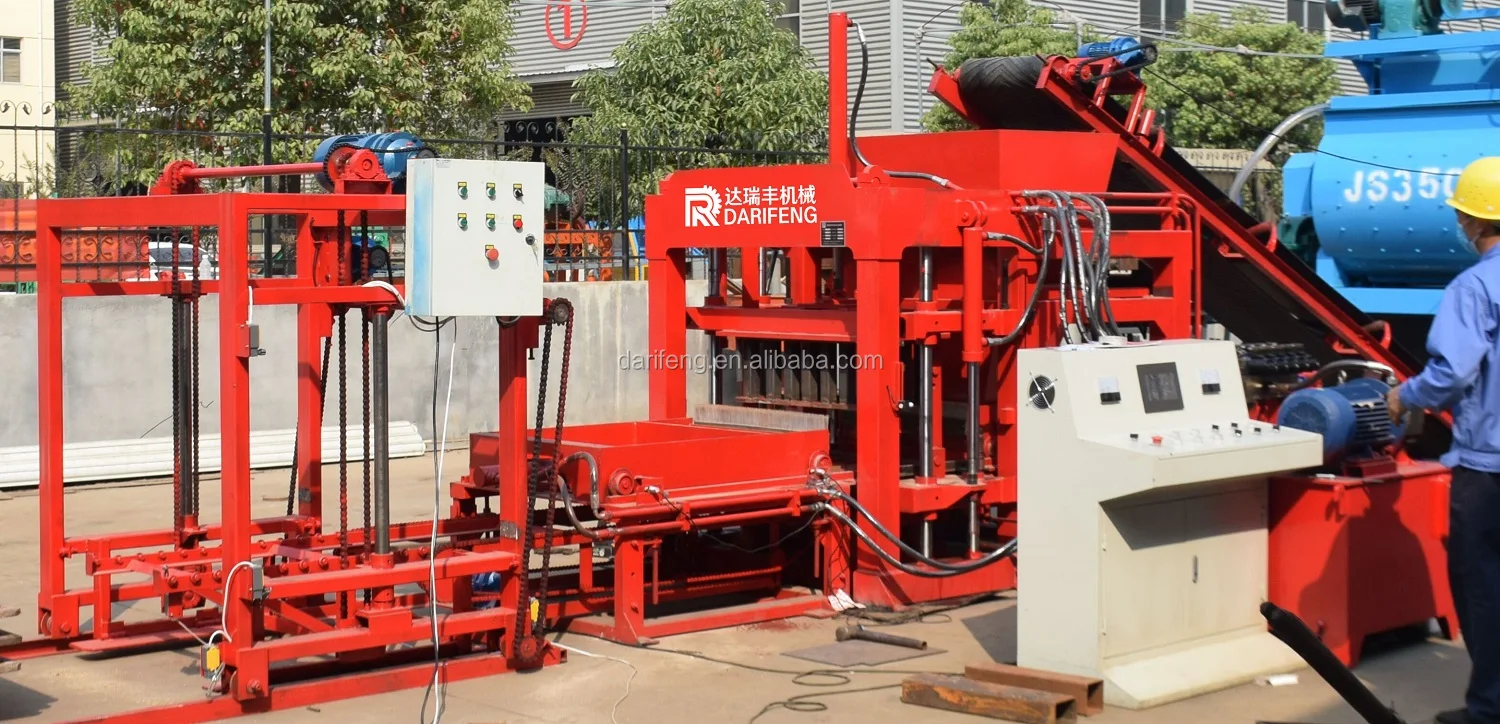

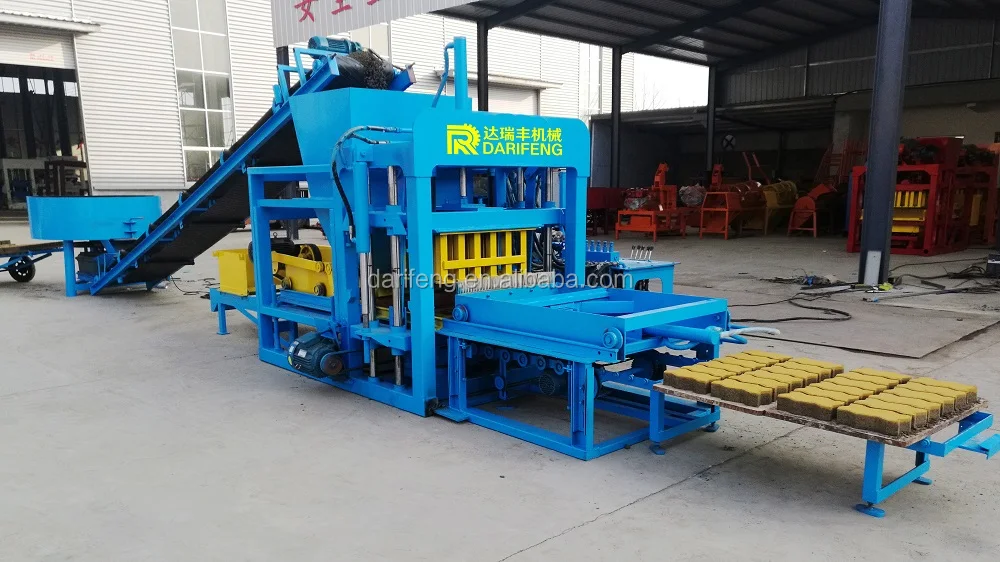

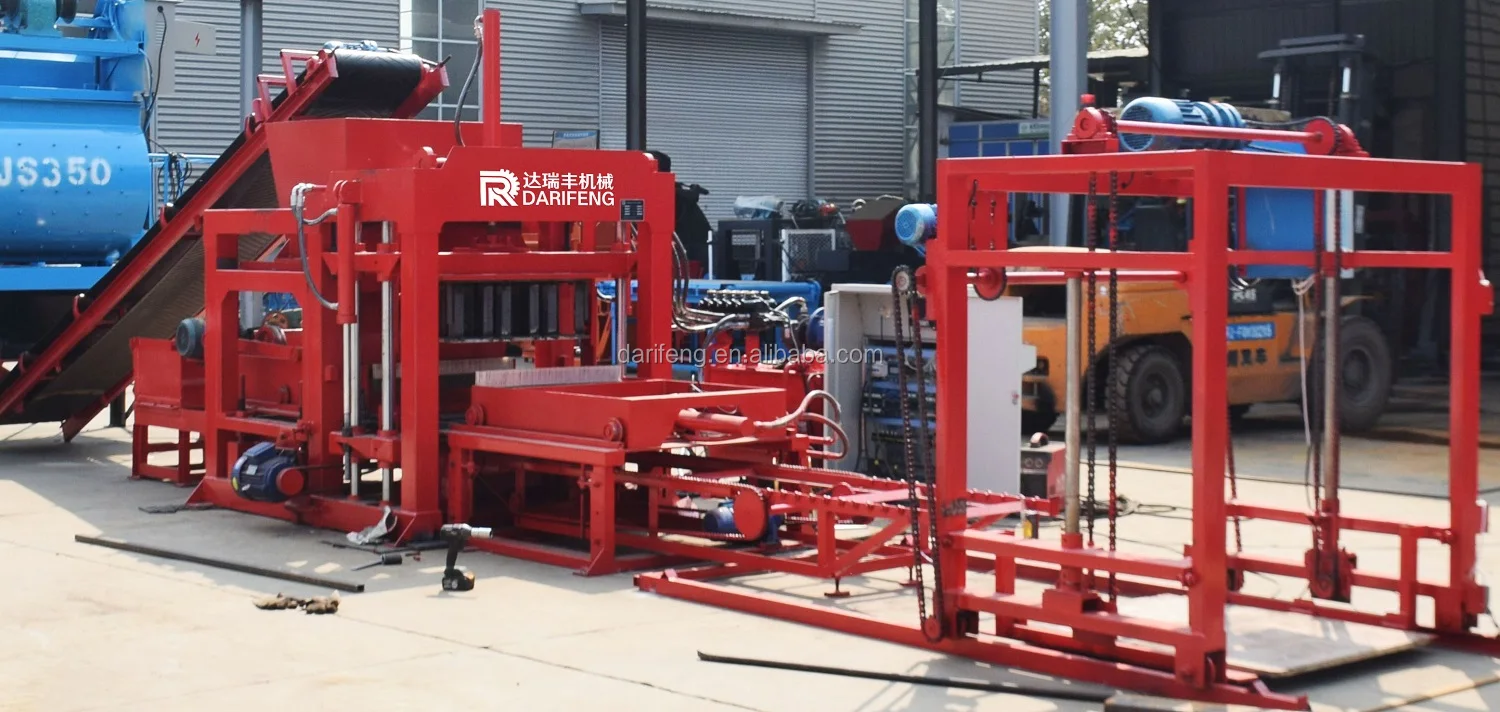

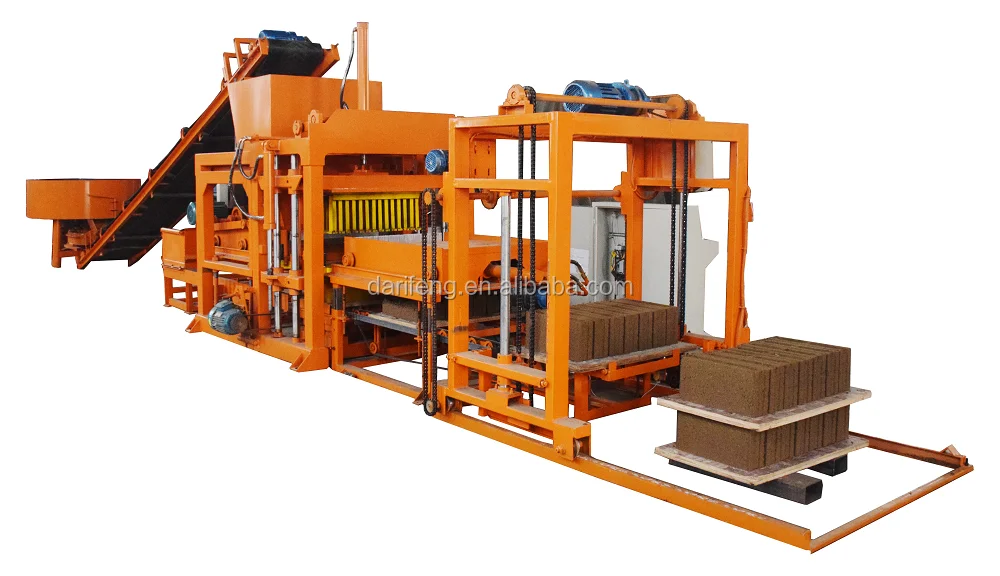

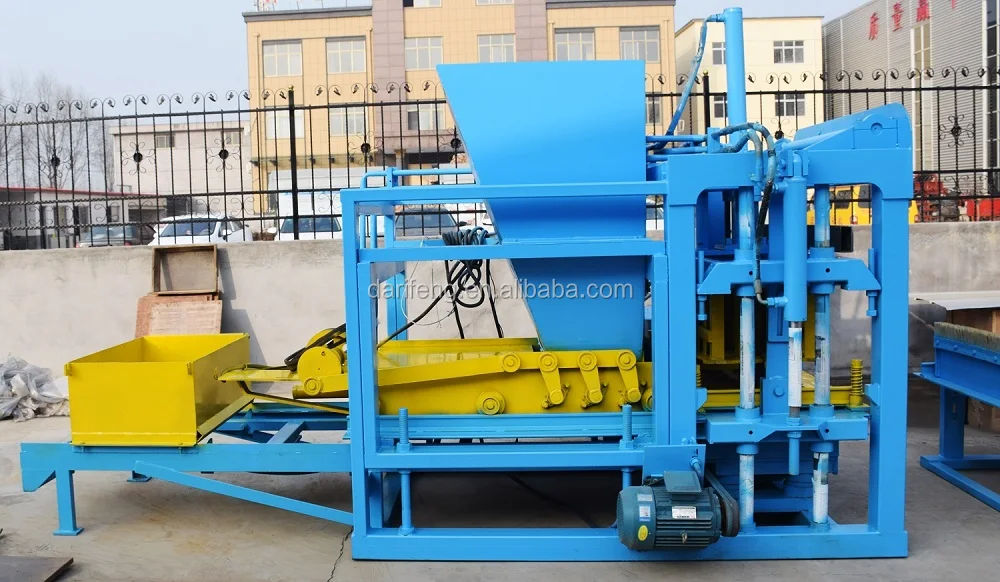

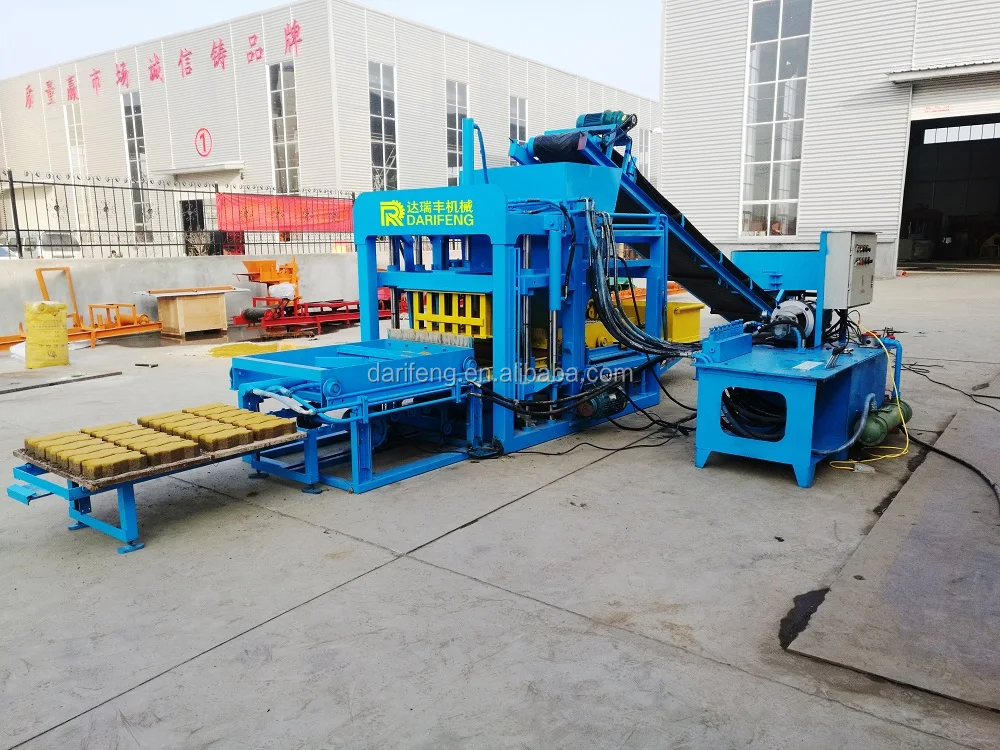

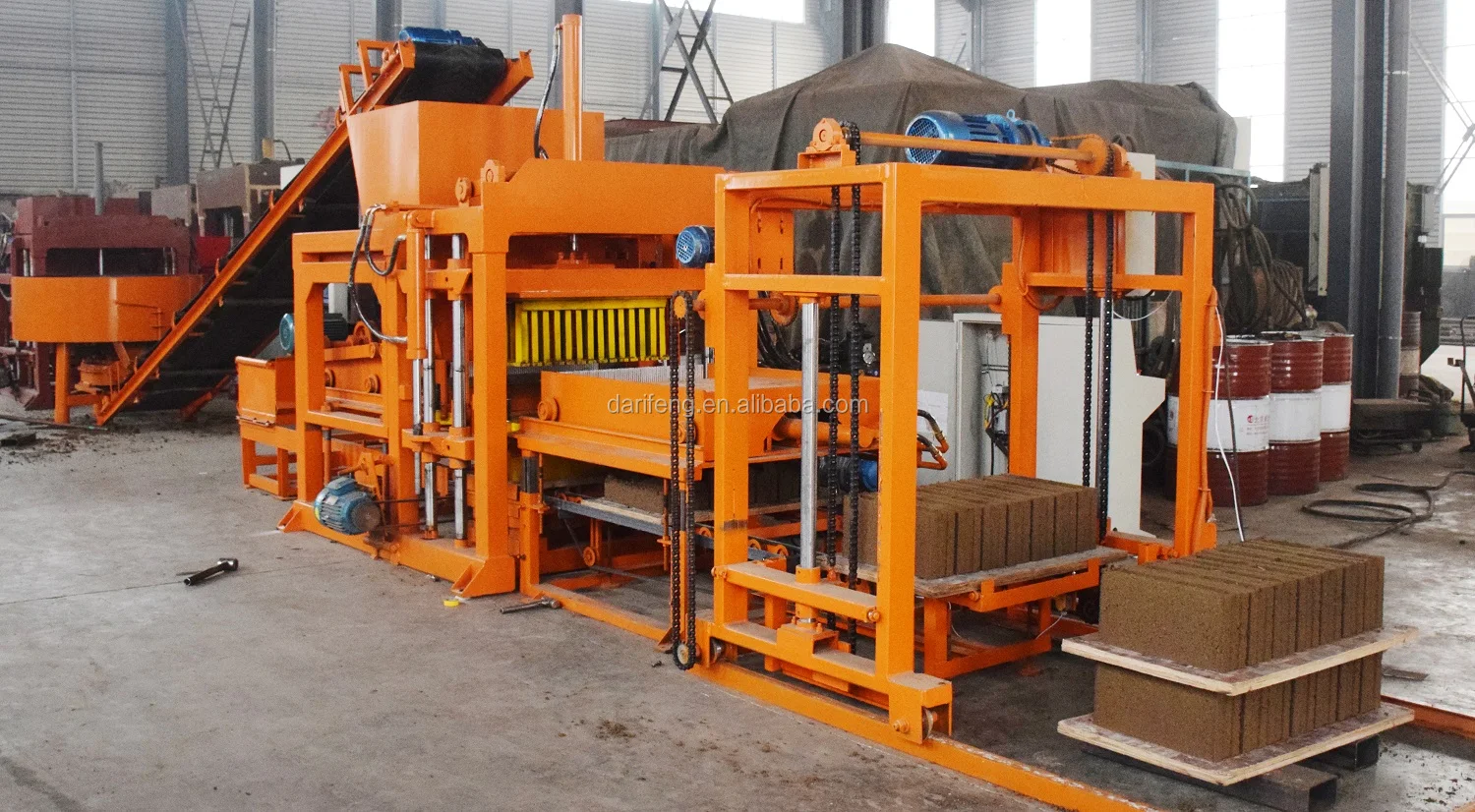

QT4-18 Block molding machine
Hydraulic pressure and vibration working together to form the concrete blocks.
Power:17.9KW
Forming cycle:25s
Pallet size:880x550mm
Vibration force:50KN
Stacker
Stacking the finished block layer by layer
Max stacking height: 1.2m
Power:1.5KW
Weight:800KGS
Block mould
Includes upper moulds and down mould.
the moulds are made from Manganese steel. through heat treatment and line cutting technology, can extend the mould lifetime 50%
Company information

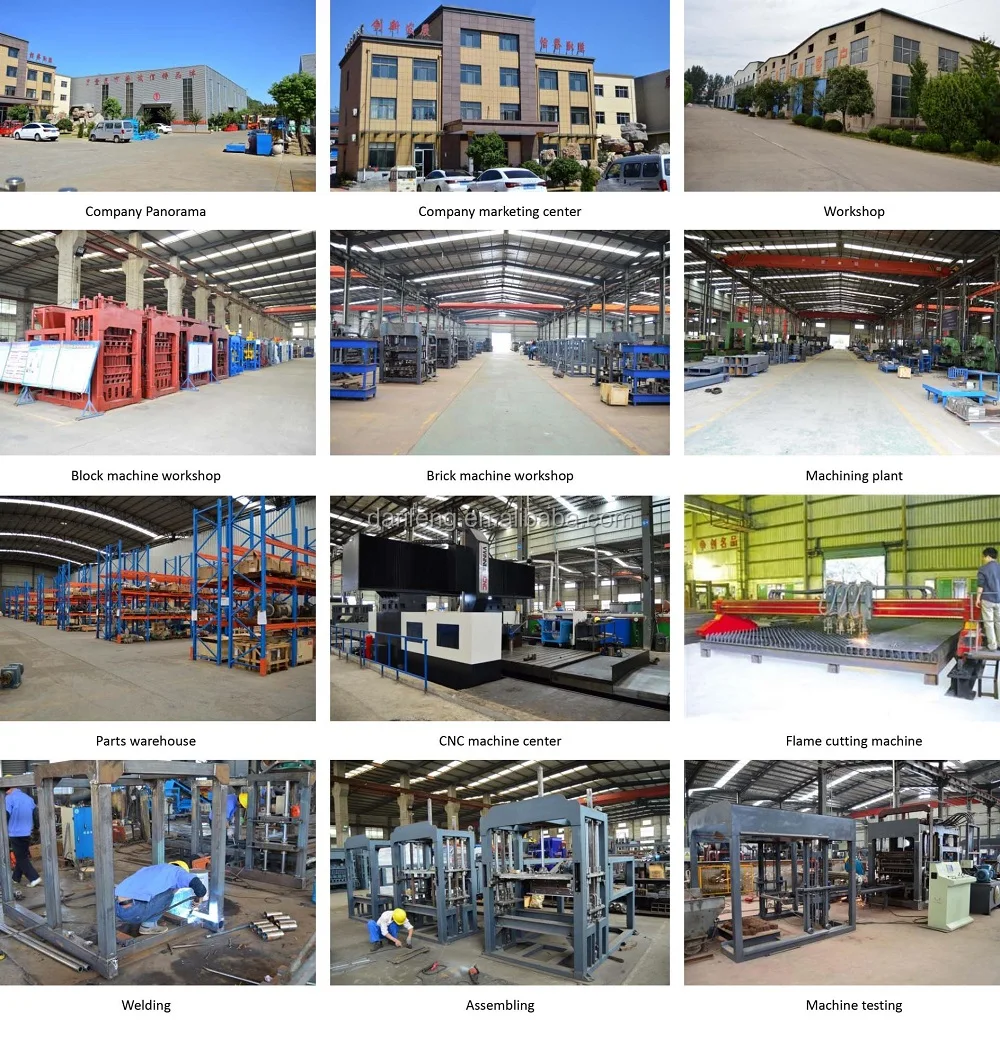

Darifeng Machinery- Profession achieves success

Qingdao Darifeng Machinery Co.,Ltd founded in 1985, is one of the biggest block & brick machine manufacturer in China, our company located in Qingdao City and Linyi City, Shandong Province, covers an area of 126,000 square meters, with 400 staffs, including medium and high-level professionals 100 staffs.


We are a high-tech enterprise, integrating science, industry and export for block & brick machine with our brand more than 30 varieties. Now we have built more than 20000 block production line in China and we also have exported block & brick machine to more than 100 countries, like Philippines, India, Bangladesh, Indonesia, Kazakhstan, Uzbekistan, Nepal, Yemen, Oman, Palestine, Armenia, Sudan, South Africa, Uganda, Mozambique, Tanzania, Ghana, Zimbabwe, Congo, Peru, Colombia, Chile, Paraguay, Bolivia Mexico etc, and have won great fame and popularity.

Our company not only provides customers with various brick and block making machine, but also provides services including process design, workshop design and factory design. In addition, we have a professional engineer team to offer the best after-sales services, such as training workers, imparting technical instruction and fixing problems, we provide all ofour customers 2 year's warranty. We always want to be the best in our industry because we clearly know that only the completely perfect quality and service are the best. Anyway, choosing to cooperate with us is really your wise choice. We are looking forward to cooperating with you.

Our service
1) Send the technicians to carry out the installation and debugging of equipment for the foreign users with compensation. Countries or regions with unstable political situation or in the throes of wartime are not included in our plan.
2) Train the users to command the equipment and guide them for safe production.
3) Explain the routine maintenance of equipment carefully and remove common faults.
4) We are responsible for all the repairs that caused by our quality problems within two year’s warranty. (We will provide one set of spare parts/wear & tear parts free of charge with shipment.)
5) For some countries whose visas are difficult obtained, customers can also send their technicians to our company to receive free guidance and training.
6) Accept suggestions for improvement put forward by customers an earnest way. In accordance with changes of the market, provide the products and services to meet the user’s needs and create value for them.
7) We will make every effort to solve your problems, and your success will add new glory to you.
FAQ
1> Is this block machine suitable for us to use?
Answer:Could you please tell us what kind of bricks do you want to make? And the capacity you want? Let us check if it can meet your request.
2>Which industry did this block machine usually be used in?
Answer: Interlocking bricks, Hollow bricks, Paving bricks,Solid bricks,etc
3>How to use the block machine?
Answer: We will send the operating manual to you after you purchase the machine, for bigger machine, we can offer engineer fly to your side for installation and training your workers.
4>How about the after sale service of block machine?
Answer: 2 year guarantee for the whole machine (without the spare parts).
5>what's your payment term
our common payment is 30% deposit by T/T before arrange the machine production,70% balance before the delivery,if other payment term,we can negotiation.
